Typography

Typography relates to the structure and appearance of textual information. It relates to visual hierarchy, letterforms, and punctuation.

When selecting typography, a solid understanding of the fundamentals of various types and styles is crucial for making informed decisions.

How typography is referenced

Typography in code is built from tokens. Tokens are generated from a platform-agnostic JSON file, and each token defines one property of a text style rather than a whole style. A heading in the Display/500/Bold style is therefore put together from these tokens:

  • font-family: var(--i80-typography-display-500-font-family);
  • font-size:var(--i80-typography-display-500-font-size);
  • line-height:var(--i80-typography-display-500-line-height);
  • font-weight:var(--i80-typography-font-weight-bold);

Rather than calling upon each of these tokens in code every time text is styled, the Text Component groups them in one place. Additional CSS helper classes have been created to ease the style creation process, if necessary.

Font families

In code, i80 uses default system fonts because they are stable, support internationalization, and improve performance by reducing resource load—key for large applications at i80.

While text styling varies slightly across operating systems, users will have a consistent and expected experience within each OS.

Sans-serif

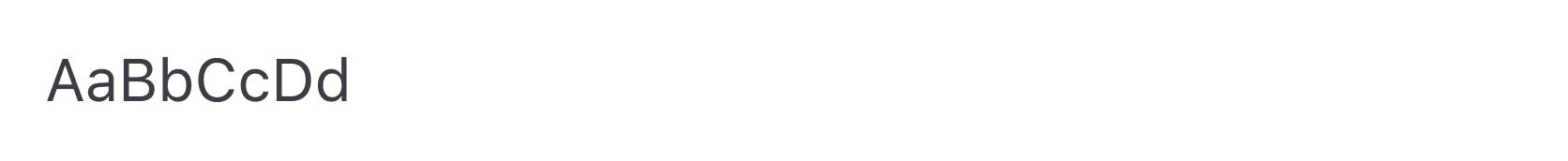

Mac + iOS sans-serif font

Large text (20px and above): SF Pro Display

Small text (19px and lower): SF Pro Text

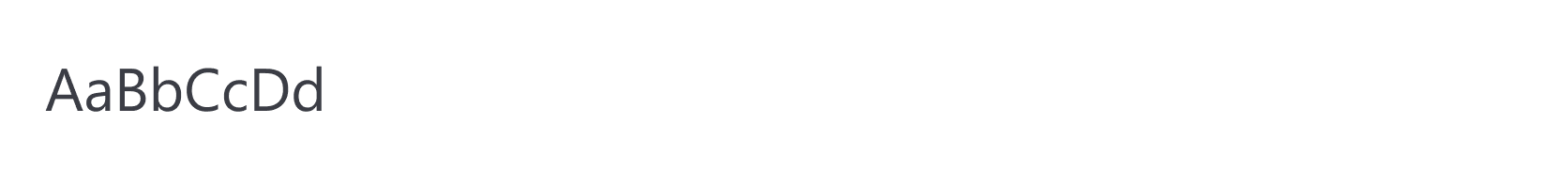

Windows sans-serif font

Large text (20px and above): Segoe UI Display

Small text (19px and lower): Segoe UI Text

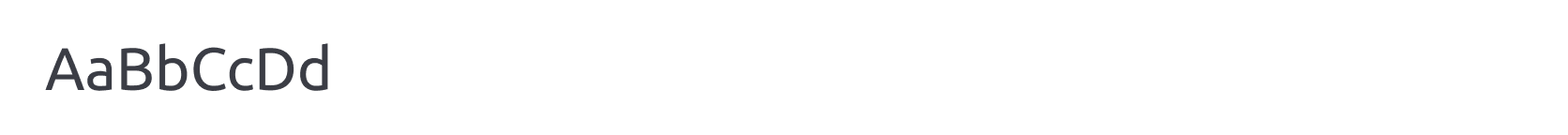

Linux sans-serif font

Linux sans-serif system font dependant on the Linux distribution

Monospace

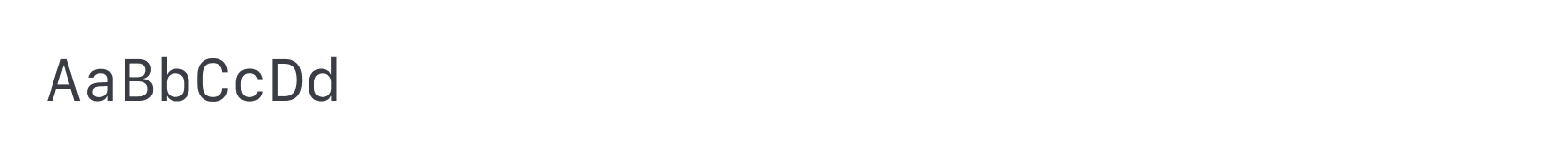

Mac + iOS monospace font

Safari 13+: SF Mono

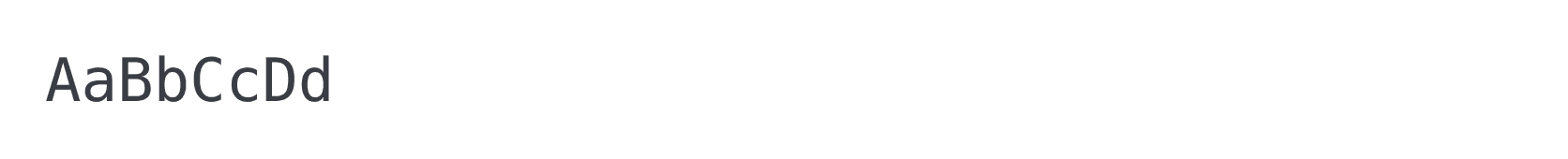

All else: Menlo

Windows

Consolas

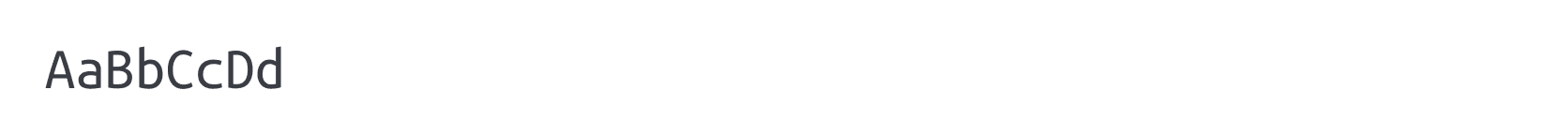

Linux

Linux monospace system font dependant on the Linux distribution

Font weights

In addition to font size, font weight helps create different levels of emphasis throughout the UI. Font weights include:

  • 400 (regular)
  • 500 (medium)
  • 600 (semi bold)
  • 700 (bold)

Within these ranges, bold is used only for display and some code text styles, while regular is associated with body text styles which may include code.

Text styles

Display

Display styles should be used for headings or visual emphasis (like remaining balances). Unless used for visual emphasis, if the display text looks like a page heading, it should use an HTML heading tag.

Display text styles are available in the following sizes and weights:

  • Display 500 (30px) - Bold
  • Display 400 (24px) - Bold
  • Display 400 (24px) - Semibold
  • Display 400 (24px) - Medium
  • Display 300 (18px) - Bold
  • Display 300 (18px) - Semibold
  • Display 300 (18px) - Medium
  • Display 200 (16px) - Semibold
  • Display 100 (13px) - Medium

Body

Body styles should be used for all general page content. Commonly placed within components (like buttons) and blocks of text, this style supports different font weights and sizes to establish a clear visual hierarchy. Body 200 is used as the default body content size as the majority of i80 products are data dense. Body 100 is often used as secondary text for hierarchical purposes while Body 300 is used for bigger UI elements like the large variant of the Button component.

Body text styles are available in the following weights and sizes:

  • Body 300 (16px) - Semibold
  • Body 300 (16px) - Medium
  • Body 300 (16px) - Regular
  • Body 200 (14px) - Semibold
  • Body 200 (14px) - Medium
  • Body 200 (14px) - Regular
  • Body 100 (13px) - Semibold
  • Body 100 (13px) - Medium
  • Body 100 (13px) - Regular

Code

Code styles are used exclusively for text representing code in the UI (like the Code Block component).

Code text styles come in the following weights and sizes:

  • Code 300 (16px) - Bold
  • Code 300 (16px) - Regular
  • Code 200 (14px) - Bold
  • Code 200 (14px) - Regular
  • Code 100 (13px) - Bold
  • Code 100 (13px) - Regular

How typography is used

Body content

Body 200 is the default font size for body content. Scaling up or down is used as a means to create visual hierarchy in page UI, or component usage. As an example, the Button, medium (default) variant is sized at Body 200 while the large variant is Body 300.

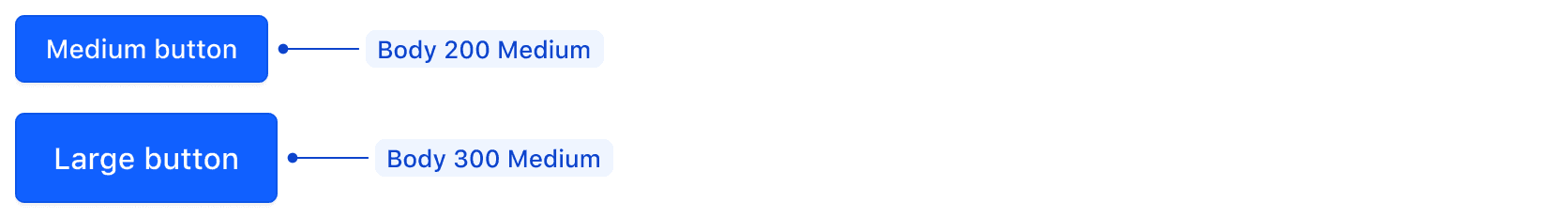

Two buttons, one medium and one large

Similarly, form fields' labels and input texts are Body 200, while any other secondary information, like helper text or error messages are sized at Body 100. This ensures that primary information is more prominent with the larger size for visual hierarchy.

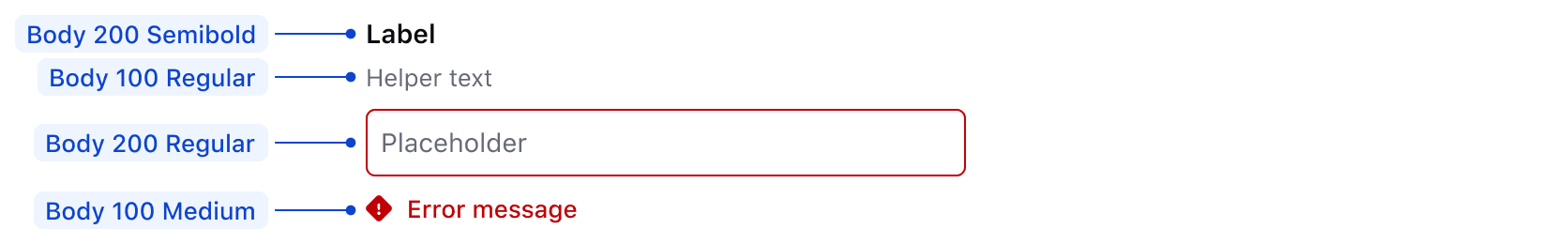

A form field with label, helper text, an input field in an error state, and an error message.

For more details about form patterns, read the form patterns documentation.

Semantic heading or not?

The Text component does not equate a specific style (Body, Display, or Code) with a specific HTML semantic structure (like <p/>, <h1/> or <span>), it is up to the consumer to define the logical semantic element for the each piece of text. To ensure accessible page content, the scaling of the Display styles often are associated with the scaling of the HTML headings such as:

  • Display 500 → H1
  • Display 400 → H2
  • Display 300 → H3
  • Display 200 → H4
  • Display 100 → H5

In general we recommend mapping Display font sizes sequentially to markup, but this is not always possible. Additionally, Display text styles do not always need to be headings. They may be used to emphasize important information, such as remaining balances, so that users are able to visually understand the level of importance of information on the page.

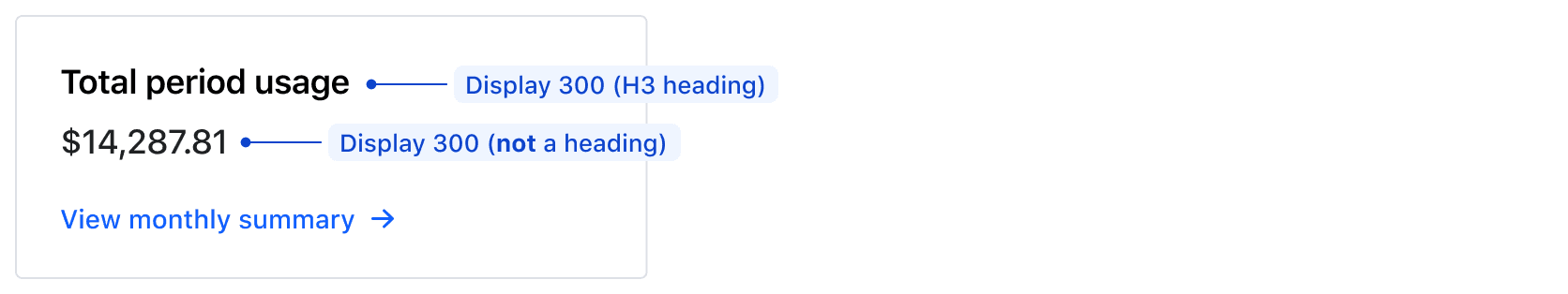

A piece of UI showing primarily an account balance, highlighting the differences between the two display styles. One a heading and the other one not.

An important note: The card is still following the semantically correct logical order of headings, where “Total period usage” is a heading (an H3 with semibold weight), while the balance below it is not (medium weight as a span or paragraph). Font weight is used to create the visual hierarchy here instead size.

How to use these styles

We offer different ways to apply typography styles to UI elements:

  • The Text element: the preferred way to apply i80 text styles, because it puts the classes on the tag you choose.
  • CSS helper classes: for markup you write yourself, or that something else renders for you.
  • Design tokens: This should be the last resort when none of the previous options are possible (or when only some of the I80 style properties are needed, like font-family, font-size, line-height, etc.)

The Text element

<i80-text> renders the tag you ask for and puts the right typography classes on it, plus colour and alignment. See Text for everything it takes.

For details about this component, see the Text page.

CSS helper classes

In a single declaration, these predefined CSS classes contain everything to apply a standard typographic style to an element: font-family, font-size, line-height, and a reset for margin and padding to match the intended design language.

The quick brown fox jumps over the lazy dog.

<p class="i80-typography-display-300">
  The quick brown fox jumps over the lazy dog.
</p>

Font styles

  • Aa
  • Aa
  • Aa
  • Aa
  • Aa
  • Aa
  • Aa
  • Aa
  • Aa
  • Aa
  • Aa

Font family

While we don’t recommend using custom styles often, font-family helpers are available to change the font family of an element.

The quick brown fox jumps over the lazy dog.

<p class="i80-font-family-sans-text">
  The quick brown fox jumps over the lazy dog.
</p>
font-family helpers Use for
font-family-sans-display Headings and titles
font-family-sans-text Body copy
font-family-mono-code Monospaced text
  • Aa
  • Aa
  • Aa

Font weight

Use the font-weight helpers to change the weight of text in an element.

The quick brown fox jumps over the lazy dog.

The quick brown fox jumps over the lazy dog.

<!-- with font-family CSS helpers -->
<p class="i80-font-family-sans-text i80-font-weight-medium">
  The quick brown fox jumps over the lazy dog.
</p>

<!-- with typographic style CSS helpers -->
<p class="i80-typography-display-300 i80-font-weight-semibold">
  The quick brown fox jumps over the lazy dog.
</p>
  • Aa
  • Aa
  • Aa
  • Aa

Style and weight

The following are recommended style and weight combinations for use in our applications:

  • The quick brown fox jumps over the lazy dog.
    display-500 (bold)
  • The quick brown fox jumps over the lazy dog.
    display-400 (medium)
  • The quick brown fox jumps over the lazy dog.
    display-400 (semibold)
  • The quick brown fox jumps over the lazy dog.
    display-400 (bold)
  • The quick brown fox jumps over the lazy dog.
    display-300 (medium)
  • The quick brown fox jumps over the lazy dog.
    display-300 (semibold)
  • The quick brown fox jumps over the lazy dog.
    display-300 (bold)
  • The quick brown fox jumps over the lazy dog.
    display-200 (semibold)
  • The quick brown fox jumps over the lazy dog.
    display-100 (medium)
  • The quick brown fox jumps over the lazy dog.
    body-300 (regular)
  • The quick brown fox jumps over the lazy dog.
    body-300 (medium)
  • The quick brown fox jumps over the lazy dog.
    body-300 (semibold)
  • The quick brown fox jumps over the lazy dog.
    body-200 (regular)
  • The quick brown fox jumps over the lazy dog.
    body-200 (medium)
  • The quick brown fox jumps over the lazy dog.
    body-200 (semibold)
  • The quick brown fox jumps over the lazy dog.
    body-100 (regular)
  • The quick brown fox jumps over the lazy dog.
    body-100 (medium)
  • The quick brown fox jumps over the lazy dog.
    body-100 (semibold)
  • The quick brown fox jumps over the lazy dog.
    code-300 (regular)
  • The quick brown fox jumps over the lazy dog.
    code-300 (bold)
  • The quick brown fox jumps over the lazy dog.
    code-200 (regular)
  • The quick brown fox jumps over the lazy dog.
    code-200 (bold)
  • The quick brown fox jumps over the lazy dog.
    code-100 (regular)
  • The quick brown fox jumps over the lazy dog.
    code-100 (bold)

Design tokens

i80 offers numerous typographic design tokens should your project require more flexibility.

Since these are “atomic” definitions that associate a particular typographic property (e.g., font-size, line-height, letter-spacing, etc.) to a single value, we don’t consider them “typographic” styles. Therefore, we advise against using them directly in your CSS and recommend using the CSS helper classes instead.
